Functional Keys with X Keyboard Extension (XKB)

·8 mins

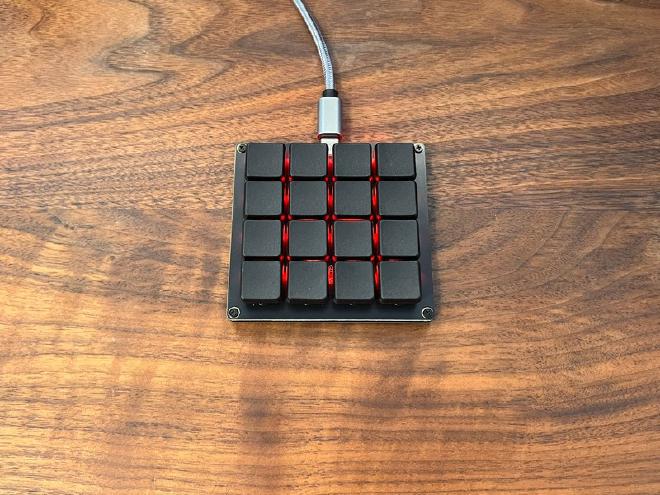

A Keebio Chocopad 4x4 keyboard with blank keycaps and red backlighting.
Table of Contents

I received a Keebio Chocopad for Christmas. The Chocopad is a 4x4 keyboard that runs QMK firmware and can be programmed using the CLI or a VIA configurator. It’s a great device that’s even smaller than I anticipated and took me no longer than 5 minutes to assemble and flash. It did, however, take much longer than 5 minutes to properly configure for my use case. Oh, Linux.

The Plan #

I planned to use the Chocopad as a macropad for OBS and other applications to perform actions such as toggle mute, switch scenes, etc. I’m running Linux so devices like the Elgato Stream Deck aren’t compatible and cost too much money for my taste.

Before configuring the Chocopad I had to decide which keys I wanted to use. After 30 minutes of research I decided to use function keys F13-F24 as they had a low possibility of conflicting with other keyboard shortcuts. For the keen reader, yes, there are function keys above F12.

I flashed the Chocopad with function keys F13-F24, opened OBS to configure hotkeys, and… nothing. OBS did not recognize F13-F24 and I had no idea why. Being a great engineer, I performed a test and flashed the Chocopad with alphanumeric keys 0-9. OBS recognized those keys and let me configure hotkeys. Success, I guess, but what’s going on with F13-F24?

The Pain #

Even though OBS didn’t recognize F13-F24 my operating system recognized them just fine. For example, when I pressed F13 my Settings application opened and when I pressed F20 my microphone toggled mute. Clearly the actual key presses were working but my operating system was interpreting those key presses as something else. I had to figure out what exactly the operating system was registering for each key press.

Before I continue let’s describe the journey from a key press on the keyboard to a character in the application. We’ll assume Linux and keep the details light as I’m sure I’ll get a “well, actually” comment from someone. Regardless, here’s the high-level journey.

  1. A key is pressed on a keyboard.
  2. The keyboard translates this key press to a keycode and sends it to the operating system.
  3. The operating system uses its input system to read the keycode.
  4. The operating system uses its event device (evdev) framework to translate the keycode into a key of event type EV_KEY.
  5. The display system (e.g., X11, Wayland) uses a keymap to translate the key into a character.
  6. The application uses the character however it sees fit.

Armed with this knowledge I decided to approach this top-down and find out how Wayland is registering my key presses. I quickly found the wev command and its output was quite helpful.

Pressing F13 registered as XF86Tools.

[14:     wl_keyboard] key: serial: 48984; time: 14200463; key: 191; state: 0 (released)
                      sym: XF86Tools    (269025153), utf8: ''

Pressing F20 registered as XF86AudioMicMute.

[14:     wl_keyboard] key: serial: 48987; time: 14203425; key: 198; state: 0 (released)
                      sym: XF86AudioMicMute (269025202), utf8: ''

If this is what Wayland saw then these mappings must be configured in my keymap. Enter X keyboard extension (XKB). XKB is responsible for, well, extending keyboard functionality through keymaps and other configuration. A quick search showed me how to print information from XKB. Specifically, where the keymap rules were configured.

> setxkbmap -print -verbose 10
...
Trying to load rules file ./rules/evdev...
Trying to load rules file /usr/share/X11/xkb/rules/evdev...
...

The output showed that rules are loaded from /usr/share/X11/xkb/rules/evdev. Searching at that location and its parent directories for XF86Tools|XF86AudioMicMute led me to /usr/share/X11/xkb/symbols/inet where I could easily see that F13 mapped to XF86Tools and F20 mapped to XF86AudioMicMute.

> rg -N 'XF86Tools|XF86AudioMicMute' /usr/share/X11/xkb
/usr/share/X11/xkb/symbols/inet
    key <FK20>   {      [ XF86AudioMicMute      ]       };
    key <FK13>   {      [ XF86Tools         ]       };

Great, but how does /usr/share/X11/xkb/rules/evdev relate to /usr/share/X11/xkb/symbols/inet?

In /usr/share/X11/xkb/rules/evdev there’s the following block.

! model         =       symbols
  chromebook    =   +inet(evdev)+inet(chromebook)
  ppkb          =   +inet(evdev)+inet(ppkb)
  *             =   +inet(evdev)

That last line tells XKB to load the evdev block within the /usr/share/X11/xkb/symbols/inet symbols file. Inspecting the file showed that the evdev block contained the mappings that I found earlier.

xkb_symbols "evdev" {
    key <FK20>   {      [ XF86AudioMicMute      ]       };
    key <FK13>   {      [ XF86Tools         ]       };
    // ...
}

As a test I updated the mappings within /usr/share/X11/xkb/symbols/inet to the following and rebooted my machine.

xkb_symbols "evdev" {
    key <FK20> { [ F20 ] };
    key <FK13> { [ F13 ] };
    // ...
}

Oh yeah! It worked! The wev command confirmed it.

[14:     wl_keyboard] key: serial: 30886; time: 13123238; key: 191; state: 1 (pressed)
                      sym: F13          (65482), utf8: ''
[14:     wl_keyboard] key: serial: 30887; time: 13123329; key: 191; state: 0 (released)
                      sym: F13          (65482), utf8: ''
[14:     wl_keyboard] key: serial: 30888; time: 13124813; key: 198; state: 1 (pressed)
                      sym: F20          (65489), utf8: ''
[14:     wl_keyboard] key: serial: 30889; time: 13124925; key: 198; state: 0 (released)
                      sym: F20          (65489), utf8: ''

You’re probably wondering where the pain is, aren’t you? After all this section is titled “The Pain” and it seems like I could just modify /usr/share/X11/xkb/symbols/inet and be on my merry way, right? Of course not! This is Linux and that means I have to spend hours configuring things, not minutes. Seriously, I spent around 4 hours figuring all this out. Here’s a quick summary of the pain I dealt with.

Yes, I could have just modified /usr/share/X11/xkb/symbols/inet and things would have worked well. That is, until the next system upgrade where that file is regenerated, overwriting my changes. I had to find a way to configure things at the user level instead of the system level.

Most of the resources available online for XKB user configuration or remapping F13-F24 keys were honestly noise and a waste of time. Specifically, the forum posts and GitHub issues where people posted vague replies or found their answer and never posted it for everyone to benefit. Don’t be like this. Do better and write things down please. The only resources that were worth it in my opinion were the following.

Even though I now knew how to configure XKB using user configuration I struggled for a while to find a fast feedback loop to test my changes. At first I was rebooting but that took far too long. Then I switched to logging out. Finally I found out that I could use gsettings to reset and configure my XKB options live. More on that in the next section.

The Program #

This post is already longer than I anticipated so I’ll do my best to briefly describe what I did. I had 2 goals going into this.

  1. Configure function keys F13-F24 to register as F13-F24 instead of silly things like XF86Tools or XF86AudioMicMute.
  2. Perform this configuration persistently and irrespective of system configuration that could be overwritten on update.

XKB uses libxkbcommon to load user configuration from $XDG_CONFIG_HOME/xkb. The directory structure within should mirror what is found at /usr/share/X11/xkb. Here’s what I ended up with.

$XDG_CONFIG_HOME/xkb
├── rules
│   ├── evdev
│   └── evdev.xml
└── symbols
    └── sudomateo

The updated mappings were located in symbols/sudomateo. These mappings configured function keys F13-F24 to register as F13-F24.

partial alphanumeric_keys
xkb_symbols "function_keys" {
    key <FK13> { [ F13 ] };
    key <FK14> { [ F14 ] };
    key <FK15> { [ F15 ] };
    key <FK16> { [ F16 ] };
    key <FK17> { [ F17 ] };
    key <FK18> { [ F18 ] };
    key <FK19> { [ F19 ] };
    key <FK20> { [ F20 ] };
    key <FK21> { [ F21 ] };
    key <FK22> { [ F22 ] };
    key <FK23> { [ F23 ] };
    key <FK24> { [ F24 ] };
};

These updated mappings were loaded by rules/evdev. The last line exposes a new XKB option named sudomateo:function_keys with the symbols defined from the function_keys block within the symbols/sudomateo file.

// Include the system `evdev` file.
! include %S/evdev

// Configure custom symbols. This is configured after including the system
// `evdev` file so the changes aren't overriden by the system configuration.
! option = symbols
  sudomateo:function_keys = +sudomateo(function_keys)

With those files in place I could now use gsettings to reset and configure my XKB options live.

# Reset.
gsettings reset org.gnome.desktop.input-sources xkb-options

# Configure.
gsettings set org.gnome.desktop.input-sources xkb-options "['sudomateo:function_keys']"

I could have also used GNOME Tweaks to configure this but that requires rules/evdev.xml to tell GNOME which XKB options are available. I also prefer the CLI to the GUI so I didn’t end up using this.

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE xkbConfigRegistry SYSTEM "xkb.dtd">
<xkbConfigRegistry version="1.1">
  <optionList>
    <group allowMultipleSelection="true">
      <configItem>
        <name>Matthew Sanabria</name>
        <description>Matthew Sanabria's custom options</description>
      </configItem>
      <option>
        <configItem>
          <name>sudomateo:function_keys</name>
          <description>Map FK13-FK24 to F13-F24</description>
        </configItem>
      </option>
    </group>
  </optionList>
</xkbConfigRegistry>

Final Thoughts #

I know what you’re thinking right now. All of that for a keymap? Trust me, I get it. If I were running macOS or Windows I could have just bought a supported macropad and used its software to configure it for OBS and other applications. While I ended up spending more time than I wanted to on this, and even more since I also wrote this post, it was worth it for me. I learned a lot about how my Linux system and XKB works and I was able to write up my findings to help future readers. All that’s left is to optimize this post for search engines so that future readers can find it and not waste as much time as I did researching things.

Okay, let me go actually use this Chocopad now. Bye!
